8CH 1080N DVR CCTV System 5MP 1080P 2.0MP Security Cameras IR Outdoor IP66 Video Surveillance Kit Motion Detection 3.6MM

Name: 8CH 1080N DVR CCTV System 5MP 1080P 2.0MP Security Cameras IR Outdoor IP66 Video Surveillance Kit Motion Detection 3.6MM
Brand: Smart Secure Home
SKU: 3ff2bff0-1741-4828-8971-8f8c35eb4b3a
Price: 235.5 USD
Availability: InStock

$235.50 USD

~~$0.00 USD~~ $235.50 USD

Sale Sold out

Loading, please wait...

Shipping calculated at checkout.

Product variants

Quantity

Incredible! Beautiful craftsmanship and style. I'm impressed with every purchase—this is my go-to for fashion!
Emma, USA

View full details

Note：

1.If you don't purchase a hard disk,you can't record and review the video.

2.If you purchase a package with a hard disk, the hard disk may be placed directly in the DVR or placed separately in the package. If you have any questions, please contact us.

3.Our 8CH DVR can connect 8 cameras max, so you can add extra cameras in the future.

1080P DVR Features

. Support 8CH 1080N definition encoding

. Support AHD, TVI,CVI, CVBS, IP video input

. HDMI/VGA simultaneous video output

. 1 SATA (Up to 8TB)

. 1*10/100Mbps auto-adaptive Ethernet port, RJ45 port

. Automatic networking support, a key to add equipment

. Support alarm information push to phone

. Support remote access, support ARSP

. Mobile phone remote monitoring (iOS, Android)

. Support Multi browser access，VMS PC client

5MP DVR Features

. Support 8CH 5MN definition encoding

. Support AHD, TVI,CVI, CVBS, IP video input

. HDMI/VGA simultaneous video output

. 1 SATA (Up to 8TB)

. 1*10/100Mbps auto-adaptive Ethernet port, RJ45 port

. Automatic networking support, a key to add equipment

. Support alarm information push to phone

. Support remote access, support ARSP

. Mobile phone remote monitoring (iOS, Android)

. Support Multi browser access，VMS PC client

1080P Camera Features

★ TVI 1080P high clarity bullet camera

★ Up to 30m night vision with 12pcs IR leds

★ 3.6mm lens brings everything back to life

★ Clear day and night vision with auto IR-cut

★ IP66 Dust and Waterproof Rating

5MP Camera Features

★ AHD 5MP high clarity bullet camera

★ Up to 30m night vision with 12pcs IR leds

★ Compatible with 12.5&20 frames 5MP DVR

★ 3.6mm lens brings everything back to life

★ Clear day and night vision with auto IR-cut

★ IP66 Dust and Waterproof Rating

Package Contents

4 X Camera ( no cable for United Kindom Warehouse)

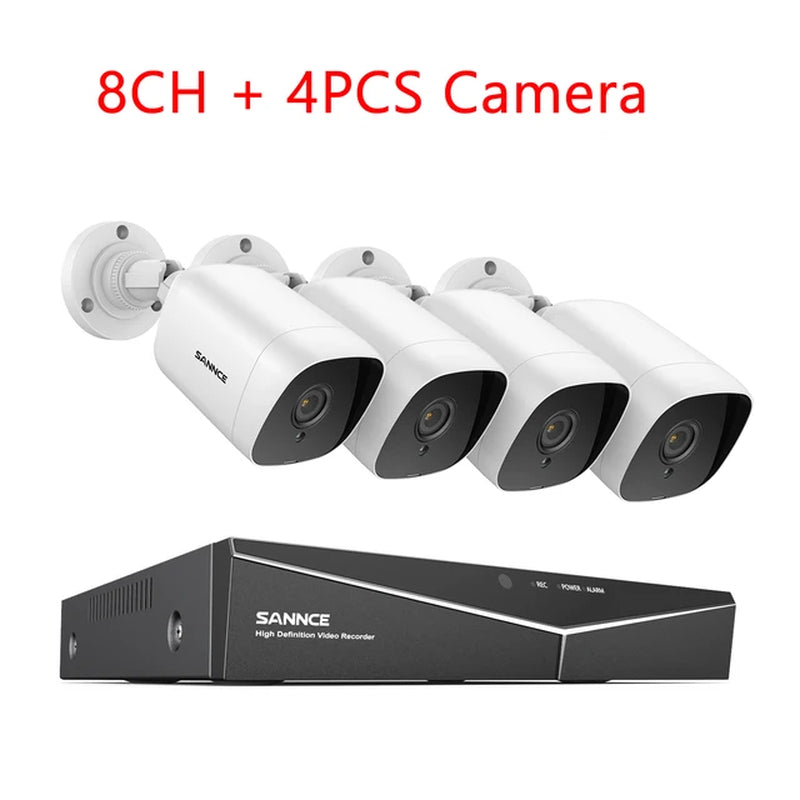

8CH 4PCS DVR Kit Pakcage Include:

1X DVR

4XCameras

4X 60 ft/18.3 m BNC Cables

2XPower Adapters

1X1-TO-4 Splitter Cable

1X USB Mouse

5X Window Warning Stickers

1X User Manual

4X Mounting Screw Bags

8CH 8PCS DVR Kit Pakcage Include:

1X DVR

8XCameras

8X 60 ft/18.3 m BNC Cables

3XPower Adapters

2X 1-TO-4 Splitter Cable

1X USB Mouse

9XWindow Warning Stickers

1X User Manual

8X Mounting Screw Bags

5MP HD Camera
Camera	Video Resolution	AHD 5MP(12.5&20 Frame )
Signal system	PAL/NTSC
Image sensor	Progressive Scan CMOS
Lens	3.6mm
Min.Illumination	0.02Lux@(F1.2 AGC ON),0Lux with IR on
Angle of View	70°
Number of Infra-Red LEDs	12
Night Vision Distance	Up to 100ft/30m
DNR	3D DNR
Wide Dynamic Range	Digital WDR
IR Cut Filter	Yes
Video Output	HD BNCx1
General	Housing	Plastic
Color	Black
Operating Power	DC12V
Operating Temperature	-4 °F – 140 °F /-20 °C – 60 °C
Indoor/Outdoor	Indoor/Outdoor
Weatherproof Rating	IP66
Dimension (L x W x H)	6.49” x2.36” x 2.36” / 165 x 60 x 60mm
Weight	0.33lbs / 150g

1080P HD Camera
Camera	Video Resolution	HD 1080P
Signal system	PAL/NTSC
Image sensor	Progressive Scan CMOS
Lens	3.6mm
Min.Illumination	0.02Lux@(F1.2 AGC ON),0Lux with IR on
Angle of View	70°
Number of Infra-Red LEDs	12
Night Vision Distance	Up to 100ft/30m
DNR	DNR
Wide Dynamic Range	Digital WDR
IR Cut Filter	Yes
Video Output	HD BNCx1
General	Housing	Plastic
Color	Black
Operating Power	DC12V
Operating Temperature	-40 °F – 140 °F /-40 °C – 60 °C
Indoor/Outdoor	Indoor/Outdoor
Weatherproof Rating	IP66
Dimension (L x W x H)	6.49” x2.36” x 2.36” / 165 x 60 x 60mm
Weight	0.33lbs / 150g

1080P DVR
Video & Audio	Codec	H.264+
Video input	8*BNC
HDMI output	1*HDMI (MAX:1080P)
VGA output	1*VGA (MAX:1080P)
Audio I/O	1/1
Encode	8*1080N@15fps
Decode	4*1080N@15fps
Multi-mode	Analog: 81080N@15fps;45M-N(21fps）
Hybird: 81080N@15fps(analog)+21080P
IP: 161080P；165MP
Playback	4CH (Analog mode)
Compression	G.711a
Intercom	Support
Hard Drive	HDD	1*SATA interface
HDD Capacity	Up to 8TB Capacity
Management	Record mode	Manual>Motion detection>Schedule
Inquire mode	Inquire by Time/Calendar/Event/Channel
Storage mode	Sata HDD
Backup	Network, USB storage
External Interface	Ethernet port	1*10/100Mbps Ethernet port, RJ45 port
Alarm I/O	/
PTZ control	/
USB Port	2*USB2.0 ports
General	Power supply	12V/2A
Consumption	<10W(Without HDD）
Temperature	0℃- + 55℃
Humidity	10% -90% RH
Dimension	255(L)* 236mm(W)* 44mm(H)
Weight	Around 1KG

5MP DVR
Video & Audio	Codec	H.264+
Video input	8*BNC
HDMI output	1*HDMI (MAX:1080P)
VGA output	1*VGA (MAX:1080P)
Audio I/O	2/1
Encode	8*5MN@15fps
Decode	4*5MN@15fps
Multi-mode	Analog: 8*5MN@15fps;
Hybird: 85MN@15fps(analog)+41080P
IP: 161080P；165MP
Playback	4CH (Analog mode)
Compression	G.711a
Intercom	Support
Hard Drive	HDD	1*SATA interface
HDD Capacity	Up to 8TB Capacity
Management	Record mode	Manual>Motion detection>Schedule
Inquire mode	Inquire by Time/Calendar/Event/Channel
Storage mode	Sata HDD
Backup	Network, USB storage
External Interface	Ethernet port	1*10/100Mbps Ethernet port, RJ45 port
Alarm I/O	0/0
PTZ control	1*RS485, Support for multiple PTZ protocol
USB Port	2*USB2.0 ports
General	Power supply	12V/2A
Consumption	<10W(Without HDD）
Temperature	0℃- + 55℃
Humidity	10% -90% RH
Dimension	255(L)* 236mm(W)* 44mm(H)
Weight	Around 1KG
